BT40 Main Spindle CNC 3D I-Beam H-Beam Drilling Sawing and Tapping Machine Line 11KW Motor Power

BT40 Main Spindle CNC 3D I-Beam H-Beam Drilling Sawing and Tapping Machine Line 11KW Motor Power

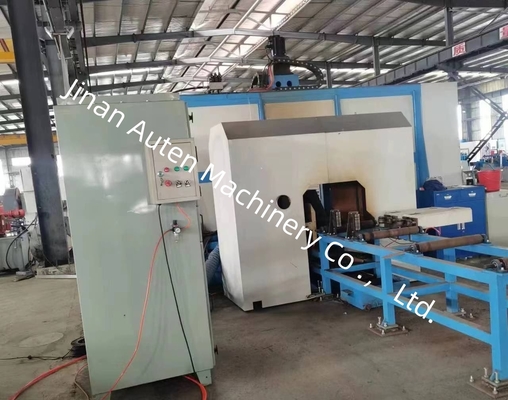

Machine tool use:

This machine tool is primarily dedicated to drilling, tapping, and marking processes for steel materials such as H-shaped steel and channel steel. It employs three BT40 high-speed spindles to conduct drilling on the three surfaces of the steel, with one spindle designated for each surface. The corresponding row-type tool magazine can house up to 4 specifications of drill bits.

It is characterized by high processing efficiency, high precision, easy operation, and wide applicability. It is extensively utilized in steel structure industries including construction, garages, towers, and grids.



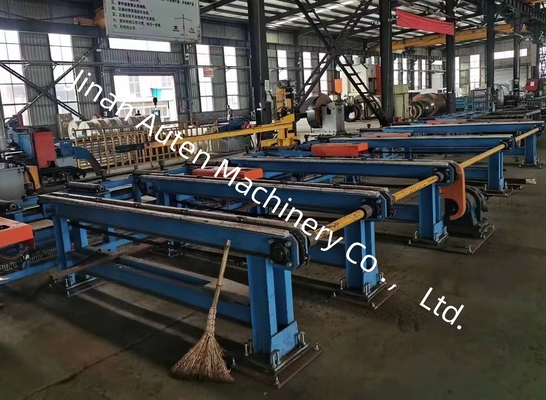

1. Discharging channel
The discharging channel is composed of a channel bracket, support rollers, etc., and is used to carry the workpiece that has been processed.
2. Cooling system
The drill bit is cooled by the spindle internal cooling method.
3. Hydraulic system
It is used to provide power for the workpiece clamping device and the knife cylinder.
4. Pneumatic system
It is used to provide power for workpiece clamping, spindle blowing, etc.



5. Lubrication system
A combination of centralized lubrication and manual lubrication is used. A centralized lubrication device is used to lubricate certain linear guides and lead screws in a timely and quantitative manner, and other lubrication points are lubricated manually.



6. Electrical system
The control system of the machine tool consists of a host computer, PLC, etc.
Programming method: Input CAD drawings or processing parameters through the USB interface or keyboard to generate a processing program. The processing program can be stored, called, displayed and communicated at any time according to the part number. The machine tool can realize both manual adjustment and control of each processing parameter separately, and automatic control processing of the entire process.


Specifications:
