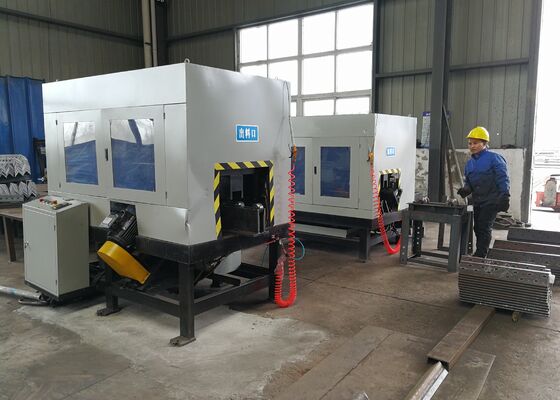

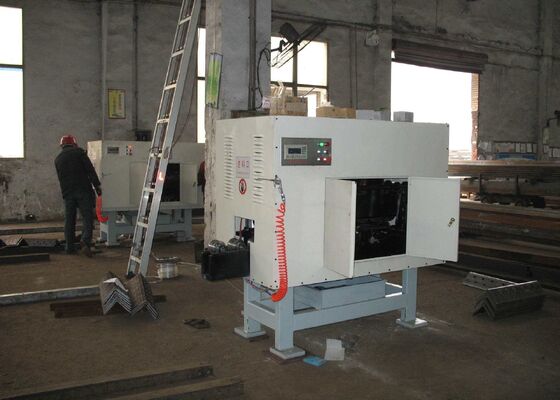

288r/Min Rotation Of Spindle CNC Angle Iron Steel Back Shovel Machine For Vietnamese Market
Application Industry:
The machine used for angle back milling, mainly in the field of angle steel tower industry, electric power fittings, and steel structure construction industry etc.
Product parameters:
| Model |
QC360 |
| Angle processing size (mm) |
63x5~360x35 |
| Feeding speed (mm/min) |
100~700 |
| Processing length (mm) |
Min.350 |
| Qty. of spindle |
3 |
| Qty. of feeding motor |
2 |
| Rotation of spindle (r/min) |
288 |
| Pressure of cylinder (kN) |
60 |
| Total power (kW) |
18.5 |
| Weight (ton) |
About 4.2 |
| Overall size (m) |
About 3.5x2.2x1.8 |
Workpiece process
1. Adjust the retraction depth and engage the handwheel. Based on the specific dimensions of the angle steel, perform the necessary manual adjustments and ensure the settings are securely locked.
2. Depress the spindle start button to activate the retraction spindle.
3. Depress the spindle feed button to commence the feeding operation.
4. Position the angle steel onto the feeding platform. The platform mechanism will automatically advance the material, enabling continuous feeding and production.
5. Upon completion of the process, the finished components will be automatically discharged from the feeding platform.
Product Feature:
1. Incorporates an automatic continuous feeding mechanism with unrestricted processing length, greatly improving production efficiency while reducing operational costs.
2. Adopts a PLC-based control system capable of delivering real-time operational information and status monitoring, ensuring convenient and efficient operation.
3. NC program control and parameter adjustment ensure excellent machining accuracy of the workpiece.
4. Equipped with a hydraulic clamping mechanism to provide stable and reliable performance, maintaining consistent processing precision throughout operation.
5. Engineered for straightforward and efficient operation, offering dependable performance, enhanced safety, and high production output.
Equipment usage instructions and Characteristics:
1. The machine utilizes high-speed milling technology for angle steel back chamfering and root removal applications.
2. Greatly improves processing productivity, delivering substantially higher efficiency than traditional planing equipment.
3. Designed for convenient operation with low technical skill requirements for operators.
4. Effectively minimizes labor intensity through a high degree of automation, supporting continuous angle steel feeding operations.
5. Unlike traditional planing machines that are restricted by processing length limitations, this advanced equipment provides enhanced operational flexibility. The machining process eliminates the need for a clamping mechanism, resulting in more convenient operation and improved overall productivity.
6. The machine is designed with intuitive operation, adaptable adjustment functions, and reliable, stable performance during operation.

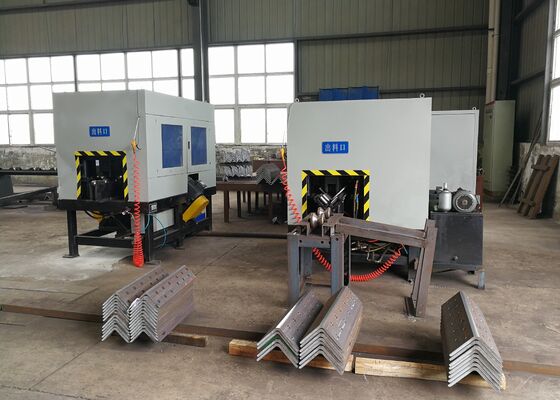

The machine is purposefully designed for angle back milling operations, providing precise and highly efficient processing of angle steel components. Finished products exhibit smooth surface finishes, accurate dimensional conformity, and clean edge profiles, making them well-suited for structural fabrication and diverse industrial applications. Sample workpieces produced by this equipment clearly illustrate its exceptional machining accuracy, consistent processing quality, and ability to perform complex back-milling tasks, offering customers a reliable benchmark for evaluating the machine’s performance and production suitability.
In the construction of ultra-high-voltage (UHV) transmission lines, where transmission towers must endure extreme environmental conditions and substantial structural loads, this equipment serves an essential role in the fabrication of angle steel components used in the tower framework. It is capable of carrying out efficient drilling and punching operations on angle steel applied to tower bodies, cross-arms, and other critical structural parts, ensuring high dimensional accuracy and reliable joint connections to guarantee the overall strength, stability, and structural integrity of the towers.
