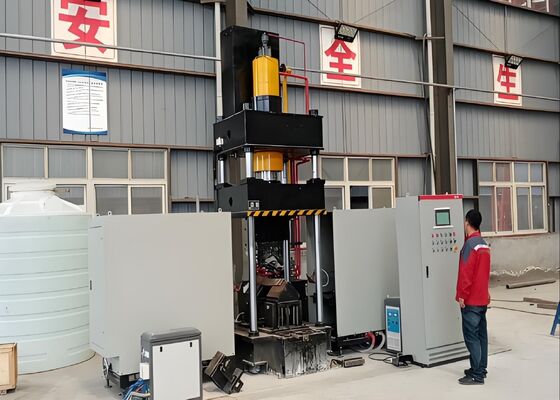

CNC Angle Line Machine With Oil Tank Pressure 3150kN For Thermal Bending Of Angle Steel Flat Metal
Applicable Industry:
This CNC Thermal Bending Apparatus is custom-engineered and factory-commissioned to deliver high-precision bending for angle steel sections and flat metal panels. It addresses the core production demands of key sectors including structural steel fabrication, mechanical component manufacturing, and architectural metalworking. Equipped with consistent forming precision and dependable operational performance, this equipment ensures that bent angle steel and metal sheets adhere to the stringent dimensional tolerances and structural standards mandated for industrial applications—thus facilitating the seamless and high-efficiency implementation of subsequent downstream manufacturing processes.
Specifications:
|
Model
|
HQ250-700
|
HQ360-900
|
|
Oil Tank Pressure (kN)
|
1600
|
3150
|
|
Outside double-sided bending size (Heel up ) (mm)
|
L80*7~L250*32
|
L80*7~L360*40
|
|
Outward double-sided bending degree for angles (°)
|
30°
|
30°
|
|
Angle steel forward single bending range (mm)
|
L80*7~L200*20
|
L100*10~L300*30
|
|
Angle steel forward single bending degree (°)
|
20°
|
20°
|
|
Bending Plate thickness (mm)
|
2~16
|
2~20
|
|
Bending Plate width (mm)
|
700
|
900
|
|
Bending degree for plates (°)
|
90°
|
90°
|
|
Angle opening & closing range (mm)
|
L80*7~L200*16
|
L100*10~L300*30
|
|
Angle opening & closing degree (°)
|
16°
|
16°
|
|
Oil Tank Stroke (mm)
|
800
|
950
|
|
Max.opening height (mm)
|
1300
|
1400
|
|
Motor Power (kW)
|
15
|
22
|
|
Heating power (kW)
|
60*2
|
120*2
|
|
CNC Axis
|
3
|
3
|
|
Oil tank capacity (L)
|
630
|
720
|
|
Overall size (m)
|
3.5x4.5x4.1
|
4.2x4.5x4.1
|
Product Features:
1. Outfitted with a computerized numerical control (CNC) programmable logic controller (PLC), the equipment incorporates a touchscreen interface for data entry and real-time operational status monitoring, thereby achieving a streamlined, user-centric workflow for day-to-day operations.
2. The machinery incorporates advanced intelligent ultrasonic frequency induction heating technology — a cutting-edge engineering solution that enhances production throughput, reduces manufacturing expenditures, and ensures full compliance with the facility’s environmental protection regulations and standards.
3. Operating as a multifunctional integrated system, this apparatus eliminates the necessity for supplementary tooling and mold customization, thus streamlining and optimizing the overall configuration of the production process.
4. Furnished with computerized numerical control (CNC) operational capabilities, this apparatus ensures the precise forming angle of workpieces, effectively upholding product quality benchmarks while elevating overall production efficiency.
5. The equipment is integrated with a standalone hydraulic system and independent electrical control system — a state-of-the-art structural design that facilitates intuitive, trouble-free operation, delivers safe and dependable performance, and supports high-volume production throughput.
6. For the processing of angle steel components with dimensions not exceeding L100×L100×10 (mm), cold-pressing technology may be deployed, provided that the specified bending angle is less than 5 degrees.
7. The average operational cycle time for cold-pressing procedures is 10 seconds per workpiece unit, whereas the thermal processing cycle duration is 120 seconds per unit (subject to the actual material grades and dimensional specifications of the components being processed). Additionally, workpiece fabrication is initiated only upon the heating temperature attaining 800 degrees Celsius (i.e., the red-hot phase), with specific process parameters being contingent on the actual material type and the required bending angle tolerances.
8. Throughout the workpiece thermal treatment phase, following the completion of process parameter configuration, operators may initiate the cycle start function or activate the foot pedal switch to commence the fully automated operational sequence. This sequence proceeds in a predefined order encompassing heating feed, thermal application, retraction of heating components upon process completion, workpiece clamping and compression, ram lifting, and final workpiece unloading and retrieval.
9. Within the integrated thermal processing and cold-pressing operational mode, subsequent to the completion of process parameter calibration, cold-pressing procedures may be executed directly. There is no mandate for the pressure ram to revert to its home position; instead, the lower pressing die elevates to create a 100mm clearance, facilitating convenient workpiece extraction. This optimized operational sequence serves to effectively enhance overall process efficiency.
These test specimens, derived from the production line of angle steel punching, cutting, and marking equipment, encompass the standard specifications and processing scenarios universally employed within the angle steel tower industry. They enable users to directly verify the equipment’s processing quality, precision performance, and craftsmanship benchmarks — core metrics that attest to the equipment’s capacity to satisfy the stringent operational demands of angle steel tower manufacturing.
In the construction of ultra-high voltage (UHV) transmission lines — an application where transmission towers are required to withstand extreme meteorological conditions and heavy structural loads — this equipment fulfills a pivotal role in processing the angle steel components that constitute the towers’ primary load-bearing framework. It performs drilling and stamping operations on angle steel for tower bodies, cross-arms, and other critical structural elements with consistent reliability, ensuring superior dimensional accuracy and robust structural connectivity. In doing so, it preserves the overall structural integrity of transmission towers, which constitutes a foundational prerequisite for the safe and uninterrupted operation of UHV power transmission systems.
