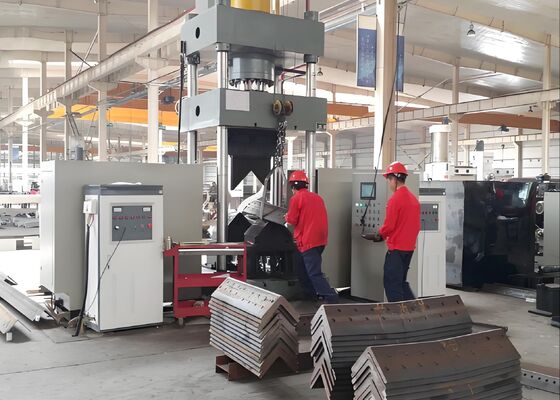

High Oil Tank Pressure CNC Angle Bending And Heating Machine With 950mm Oil Tank Stroke
Applicable Industry:
This CNC Heating Bending Equipment is specially designed and commissioned for the precision bending of angle steel profiles and flat metal sheets. It caters to the core manufacturing requirements of sectors such as structural steel fabrication, mechanical component manufacturing, and architectural metal processing. Endowed with stable forming accuracy and reliable operational efficiency, this equipment guarantees that the bent angle steel and metal plates meet the rigorous dimensional and structural specifications for industrial use—thereby enabling the smooth and efficient execution of subsequent downstream production procedures.
Specifications:
|
Model
|
HQ250-700
|
HQ360-900
|
|
Oil Tank Pressure (kN)
|
1600
|
3150
|
|
Outside double-sided bending size (Heel up ) (mm)
|
L80*7~L250*32
|
L80*7~L360*40
|
|
Outward double-sided bending degree for angles (°)
|
30°
|
30°
|
|
Angle steel forward single bending range (mm)
|
L80*7~L200*20
|
L100*10~L300*30
|
|
Angle steel forward single bending degree (°)
|
20°
|
20°
|
|
Bending Plate thickness (mm)
|
2~16
|
2~20
|
|
Bending Plate width (mm)
|
700
|
900
|
|
Bending degree for plates (°)
|
90°
|
90°
|
|
Angle opening & closing range (mm)
|
L80*7~L200*16
|
L100*10~L300*30
|
|
Angle opening & closing degree (°)
|
16°
|
16°
|
|
Oil Tank Stroke (mm)
|
800
|
950
|
|
Max.opening height (mm)
|
1300
|
1400
|
|
Motor Power (kW)
|
15
|
22
|
|
Heating power (kW)
|
60*2
|
120*2
|
|
CNC Axis
|
3
|
3
|
|
Oil tank capacity (L)
|
630
|
720
|
|
Overall size (m)
|
3.5x4.5x4.1
|
4.2x4.5x4.1
|
Product Features:
1. Equipped with a numerically controlled programmable logic controller (PLC), the machinery integrates a touchscreen interface for data input and real-time status reporting, thereby realizing a streamlined and user-oriented operational workflow.
2. It embodies intelligent ultrasonic frequency induction heating technology — a sophisticated engineering solution that boosts production efficiency, lowers manufacturing costs, and ensures full adherence to the factory’s environmental protection protocols.
3. Functioning as a multifunctional integrated system, it obviates the requirement for additional tooling and mold configuration, thereby optimizing and simplifying the overall production process setup.
4. Equipped with CNC control capabilities, this equipment ensures the precise forming angle of workpieces, effectively maintaining product quality standards while enhancing production efficiency.
5. It is integrated with an independent hydraulic system and electrical control system — an advanced structural configuration that enables simple and hassle-free operation, provides safe and reliable performance, and supports high production capacity.
6. For the processing of angle steel with dimensions not exceeding L100×L100×10 (mm), cold pressing technology can be adopted on the condition that the bending angle is less than 5 degrees.
7. The average cycle duration for cold pressing operations is 10 seconds per unit, while the heating processing cycle stands at 120 seconds per unit (contingent upon the actual processed materials and their specifications). Furthermore, workpiece processing is carried out once the heating temperature reaches 800 degrees Celsius (i.e., the red-hot state), with specific parameters dependent on the actual material type and bending angle requirements.
8. During the workpiece heating process, upon completion of parameter configuration, operators may initiate the cycle start function or activate the foot switch to launch the fully automated operational workflow. This workflow sequentially includes heating feed, heating implementation, retraction after heating completion, workpiece compression application, pressure head lifting, and final workpiece unloading.
9. In the combined heating and cold pressing operation, upon the completion of parameter configuration, cold pressing may be conducted directly. There is no requirement for the pressure head to return to its initial position; instead, the lower pressing die ascends to form a 100mm gap, enabling easy workpiece removal. This optimized operational process effectively improves operational efficiency.
These specimens, sourced from the production line of angle steel punching, cutting, and marking equipment, cover the standard specifications and processing scenarios widely adopted in the angle steel tower industry. They allow users to directly validate the equipment’s processing quality, precision performance, and craftsmanship standards — core indicators that demonstrate the equipment’s ability to meet the rigorous operational requirements of angle steel tower manufacturing.
In the construction of ultra-high voltage (UHV) transmission lines — where transmission towers must withstand extreme meteorological conditions and heavy loads — this equipment serves a critical function in processing the angle steel components that form the main framework of the towers. It reliably conducts drilling and stamping operations on the angle steel used for tower bodies, cross-arms, and other critical structural parts. This ensures exceptional dimensional precision and robust connectivity, thereby upholding the overall structural stability of the transmission towers — a fundamental prerequisite for the safe and uninterrupted operation of UHV transmission systems.
